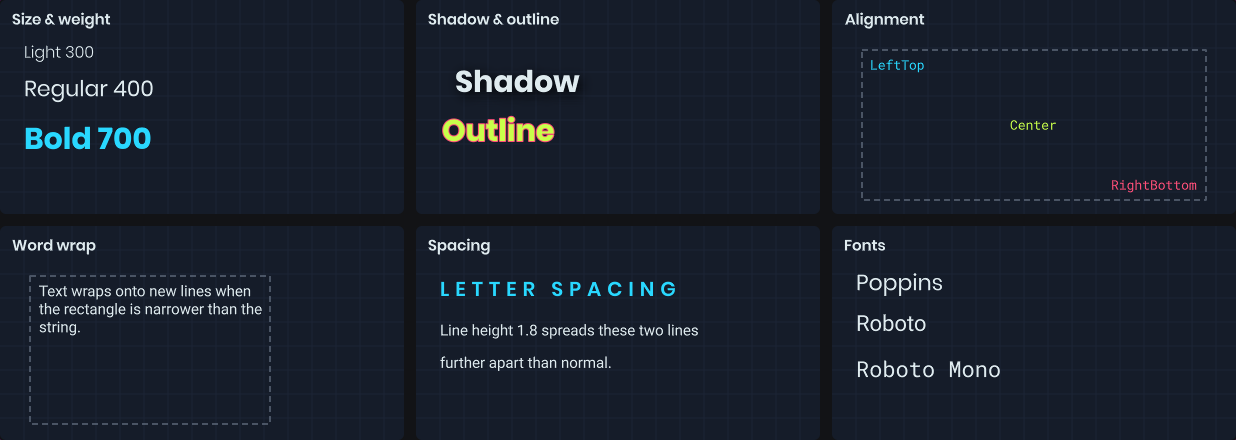

Text draws a string inside a rectangle using the painter's TextStyle. The rectangle is the layout area: text is aligned within it and wraps inside it when you ask it to.
painter.TextStyle = new TextStyle
{
FontName = "Roboto",
FontSize = 24,
FontWeight = 700,
Color = Color.White,
Alignment = TextFlag.Center
};
painter.Text( "Hello!", painter.Bounds );
The default style is white, 16px Roboto, aligned to the top-left.
TextStyle is a record, so you can tweak a copy with with or the fluent helpers. Helpers are handy for sharing a base style and varying it.
var heading = TextStyle.Default.WithSize( 28 ).WithBold().WithColor( Color.Cyan );
var small = heading.WithSize( 12 ).WithBold( false ).WithColor( Color.Gray );
painter.TextStyle = heading;
painter.Text( "Score", rect );
painter.TextStyle = small;
painter.Text( "Last round: 1240", rect );
| Property | Helper | Notes |
|---|---|---|
FontName | WithFont | Falls back to the default font if unavailable. |
FontSize | WithSize | In pixels. On a panel, scaled the same as CSS font sizes. |
FontWeight | WithWeight, WithBold | 100 to 900. Normal is 400, bold is 700. |
Italic | WithItalic | |
Color | WithColor | Alpha applies to the text and its effects. |
Alignment | WithAlignment | TextFlag values, see below. |
LineHeight | WithLineHeight | Multiplier, 1 is normal. |
LetterSpacing, WordSpacing | WithLetterSpacing, WithWordSpacing | Extra pixels. |
Shadow | WithShadow, WithoutShadow | One drop shadow with blur and offset. |
Outline | WithOutline, WithoutOutline | One outline with a width. |
painter.TextStyle = TextStyle.Default
.WithSize( 32 )
.WithShadow( Color.Black, blur: 4, offset: new Vector2( 2, 2 ) )
.WithOutline( Color.Black, width: 2 );
Alignment combines a horizontal and vertical position with layout flags.
painter.TextStyle = painter.TextStyle with { Alignment = TextFlag.RightBottom };
painter.TextStyle = painter.TextStyle with { Alignment = TextFlag.CenterTop | TextFlag.WordWrap };
| Flag | Description |
|---|---|
LeftTop, Center, RightBottom, ... | Position within the rectangle. |
WordWrap | Wrap at word boundaries to fit the width. |
WrapAnywhere | Wrap between any characters. |
SingleLine | Never wrap. |
DontClip | Let text overflow the rectangle. |
MeasureText tells you how big a string will be with the current style, without drawing it. Use it to size a background behind a label, or to lay text out next to other shapes.
painter.TextStyle = TextStyle.Default.WithSize( 18 );
var size = painter.MeasureText( name );
var box = new Rect( position, size + new Vector2( 16, 8 ) );
painter.Fill = Color.Black.WithAlpha( 0.7f );
painter.Rect( box, 4 );
painter.Text( name, box.Shrink( 8, 4 ) );
There's also an overload that takes a rectangle and returns the exact rectangle Text will draw into, after alignment. Passing a size limits the layout width, so wrapped text measures correctly.
