FilmGrain

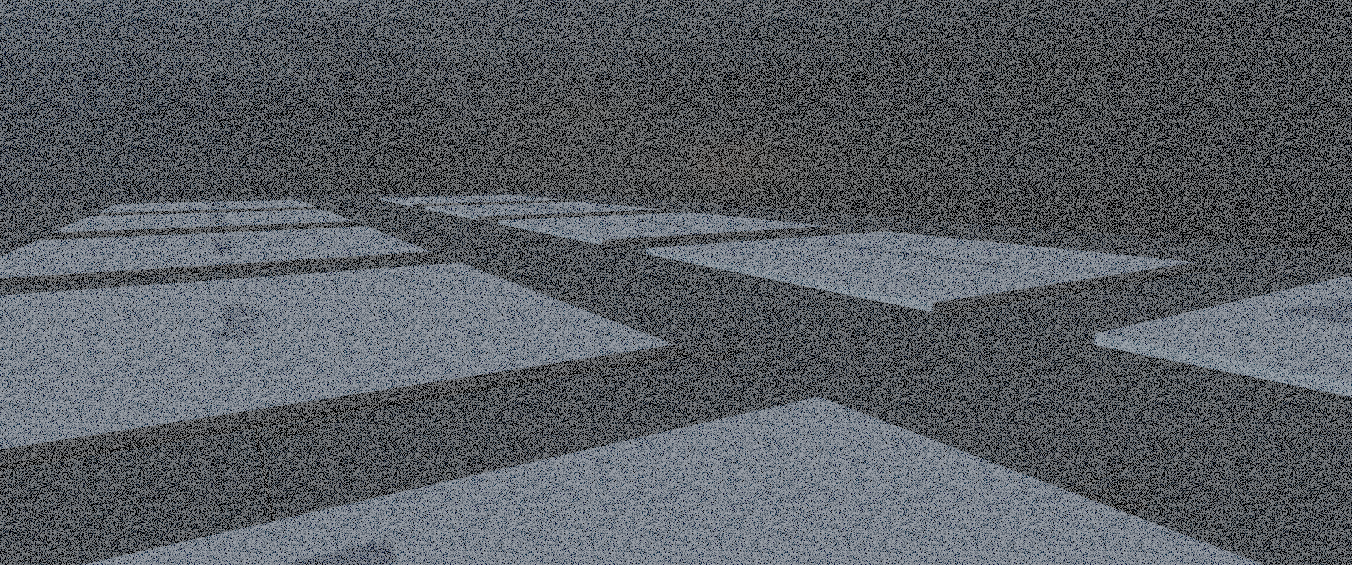

The FilmGrain component adds simulated film-style grain to the camera output. It's purely visual, it does not affect gameplay or lighting, and is intended to add texture, grit or stylistic noise to the final image.

namespace Sandbox;

/// <summary>
/// Applies a film grain effect to the camera
/// </summary>
[Title( "FilmGrain" )]
[Category( "Post Processing" )]
[Icon( "grain" )]
public sealed class FilmGrain : BasePostProcess<FilmGrain>
{
	[Range( 0, 1 )]
	[Property] public float Intensity { get; set; } = 0.1f;

	[Range( 0, 1 )]
	[Property] public float Response { get; set; } = 0.5f;

	private static Material Shader = Material.FromShader( "shaders/postprocess/pp_filmgrain.shader" );

	public override void Render()
	{
		float intensity = GetWeighted( x => x.Intensity );
		if ( intensity.AlmostEqual( 0.0f ) ) return;

		float response = GetWeighted( x => x.Response, 1 );

		Attributes.Set( "intensity", intensity );
		Attributes.Set( "response", GetWeighted( x => x.Response, 1 ) );

		var blit = BlitMode.WithBackbuffer( Shader, Stage.AfterPostProcess, 200, false );
		Blit( blit, "FilmGrain" );
	}
}

HEADER
{
    DevShader = true;
}

MODES
{
    Default();
    Forward();
}

COMMON
{
    #include "postprocess/shared.hlsl"
}

struct VertexInput
{
    float3 vPositionOs : POSITION < Semantic( PosXyz ); >;
    float2 vTexCoord : TEXCOORD0 < Semantic( LowPrecisionUv ); >;
};

struct PixelInput
{
    float2 uv : TEXCOORD0;

	// VS only
	#if ( PROGRAM == VFX_PROGRAM_VS )
		float4 vPositionPs		: SV_Position;
	#endif

	// PS only
	#if ( ( PROGRAM == VFX_PROGRAM_PS ) )
		float4 vPositionSs		: SV_Position;
	#endif
};

VS
{
    PixelInput MainVs( VertexInput i )
    {
        PixelInput o;

        o.vPositionPs = float4(i.vPositionOs.xy, 0.0f, 1.0f);
        o.uv = i.vTexCoord;
        return o;
    }
}

PS
{
    #include "postprocess/common.hlsl"
    #include "postprocess/functions.hlsl"
    #include "procedural.hlsl"

    #include "common/classes/Depth.hlsl"

    Texture2D g_tColorBuffer < Attribute( "ColorBuffer" ); SrgbRead( true ); >;

    float grainIntensity< Attribute("intensity"); >;
    float grainResponse< Attribute("response"); >;

    Texture2D g_tBlueNoise < Attribute( "BlueNoise" ); >;

    float3 FilmGrain( float3 vColor, float3 flSampledGrain, float intensity, float flResponse )
    {
        // Remap grain to a -1 -> 1 range
        flSampledGrain.rgb = flSampledGrain.b;

        // Grab our luminence and rescale based on response
        float lum = 1 - (GetLuminance( vColor.rgb ) * 5.0f);
        intensity *= saturate( lerp( 1.0f, saturate( lum ), flResponse ) );

        float3 fullGrain = saturate( (flSampledGrain - 0.1) * 2 ) - 0.7;

        vColor = lerp( vColor, GetLuminance( vColor.rgb ) * 0.1, intensity );

        return lerp( vColor, fullGrain, intensity );
    }

    float4 MainPs( PixelInput i ) : SV_Target0
    {
        float2 vScreenUv = CalculateViewportUv( i.vPositionSs.xy );
        float4 color = g_tColorBuffer.SampleLevel( g_sBilinearMirror, vScreenUv, 0 );

        float2 scale = float2( g_vRenderTargetSize.x , g_vRenderTargetSize.y ) / 128;

        float2 vGrainUvs = TileAndOffsetUv( vScreenUv, scale, float2(frac(g_flTime * 4.042f), frac(g_flTime * 34.054f)) );
        float3 flGrain = g_tBlueNoise.SampleLevel( g_sBilinearWrap, vGrainUvs, 0 ).rgb;
        flGrain += g_tBlueNoise.SampleLevel( g_sBilinearWrap, -vGrainUvs * 5, 0 ).brg;
        flGrain *= 0.5;

        color.rgb = FilmGrain( color.rgb, flGrain, grainIntensity, grainResponse );
        return color;
    }
}
